Automated Pin Insertion
Overview
Convert a Tedious Manual Process
Small pins are a manufacturing challenge. The whole value stream is logistically and ergonomically problematic – so why are there few automated solutions specifically for very small pins? The answer is simple: it is hard. Using our expertise in handling small pins and wire, we developed a solution for OEMs designed specifically to handle and install these small to extremely small parts.
Request Information ›The Novo Lean Solutions Advantage:
-
Reduce Muda (Waste)
With hands-on experience in machining, manufacturing, and assembly, we understand the monetary impact of waste. We are relentless in our pursuit of reducing material, time and process waste. -
Lean Operations
Our lean approach emphasizes continuous improvement, workflow standardization, product quality, waste reduction, and environmental controls. -
Shop Floor Experience
The Novo family of brands has decades of manufacturing experience, including over 40 years with Novo Precision and 20 years with Novo Metal Finishing Technologies.

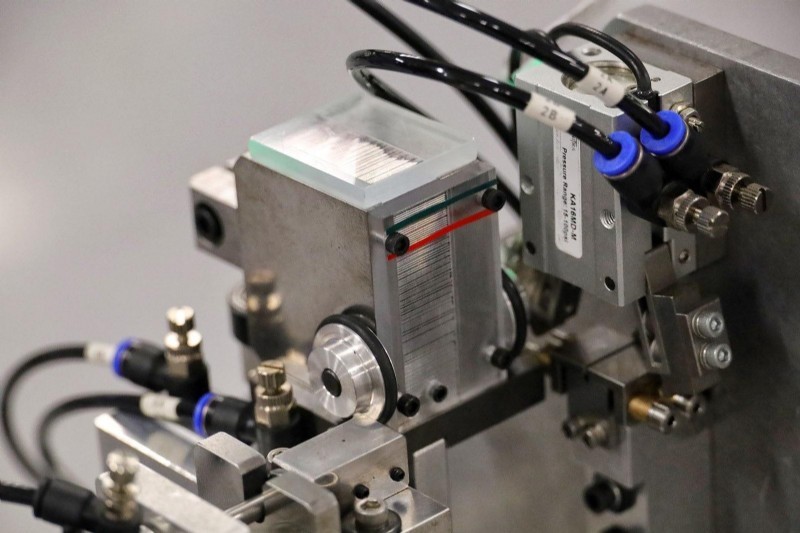

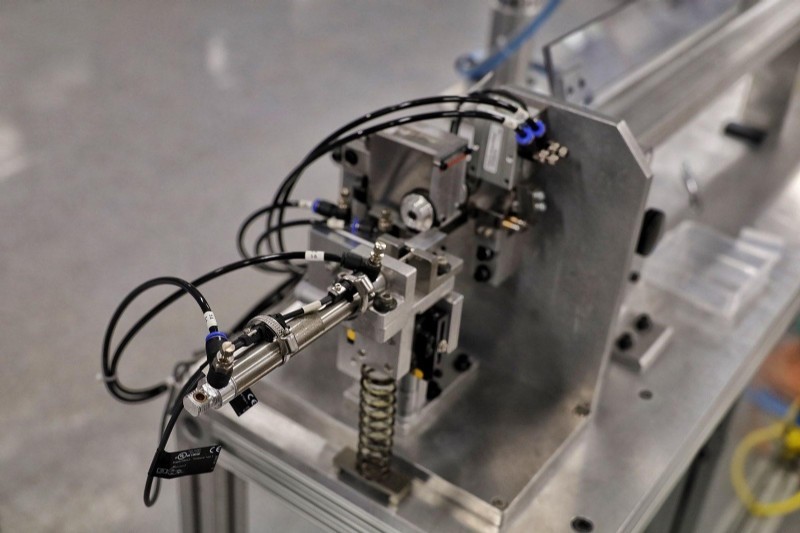

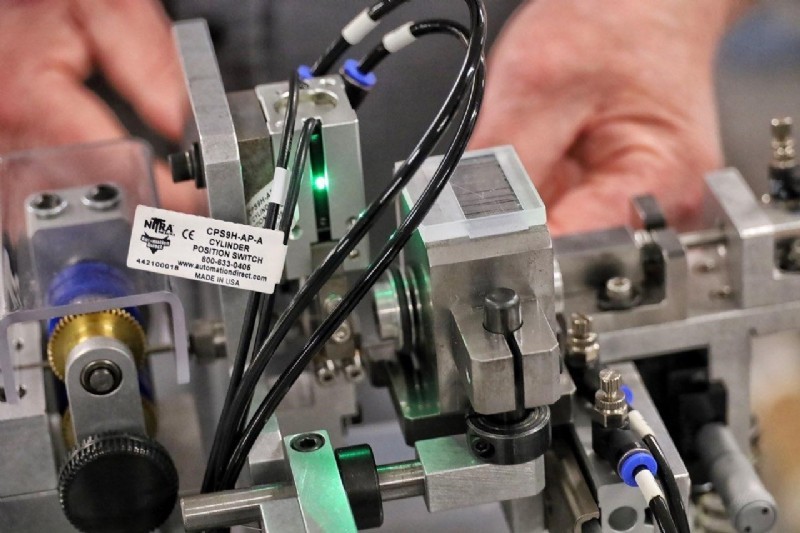

The Novo Precision Automated Pin Feeder is a custom-designed pin insertion system that orients and cleanly inserts small, tightly toleranced pins directly into an assembly. The Automated Pin Feeder stores a batch of pins protected inside of a custom chamber. Small, controlled movements transition a single pin to the insertion step. The insertion step cleanly and efficiently installs the pin into the receiving assembly. The Automated Pin Feeder is designed for small to extremely small parts that are not compatible with traditional bulk pin feeder methods.
Traditional bulk pin feeder systems such as vibratory bowls, centrifugal feeders, linear feeders, drums, or elevator feeders use bulk part movement to shake parts to orient them for the next assembly step. These methods require substantial part-to-part interaction, long racetracks and occasionally blasts of air which can damage small features and invite unwanted particles into the system.
Our system provides the following benefits:
- Eliminates the unreliability of manual assembly
- Improves efficiency by 10x or more over manual processes
- Prevents repetitive strain injury (RSI) from manual assembly
- Keeps parts clean and free of foreign object debris (FOD)
- Connects multiple steps through automation for more reliable output
