Tekda In-Line Spring Coiling System

Overview

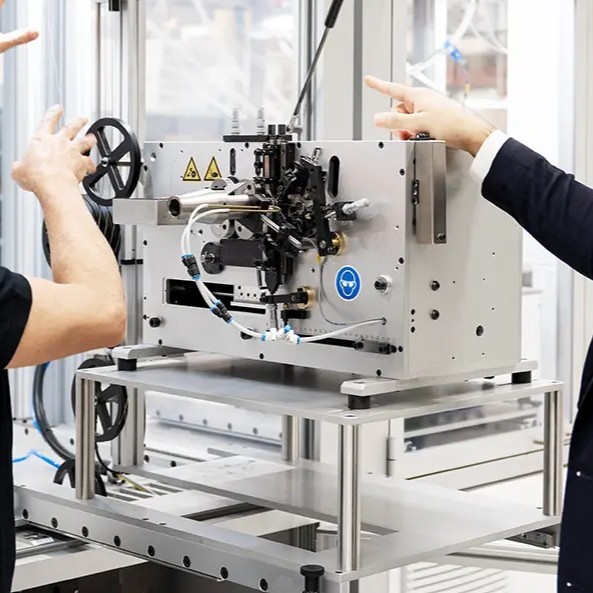

Tekda C2 Pneumatic Spring Coiler

The Tekda C2 Pneumatic System is a durable, automation‑ready spring‑forming unit engineered for continuous operation. Its coiling capabilities accommodate varied production speeds, spring designs, and precision tolerances.

• Wire diameter: 0.1 mm to 1.1 mm
• Outer diameter (OD): 1 mm to 22 mm
• Pitch range: 0.4 mm to 26.4 mm (dependent on OD and spring design)

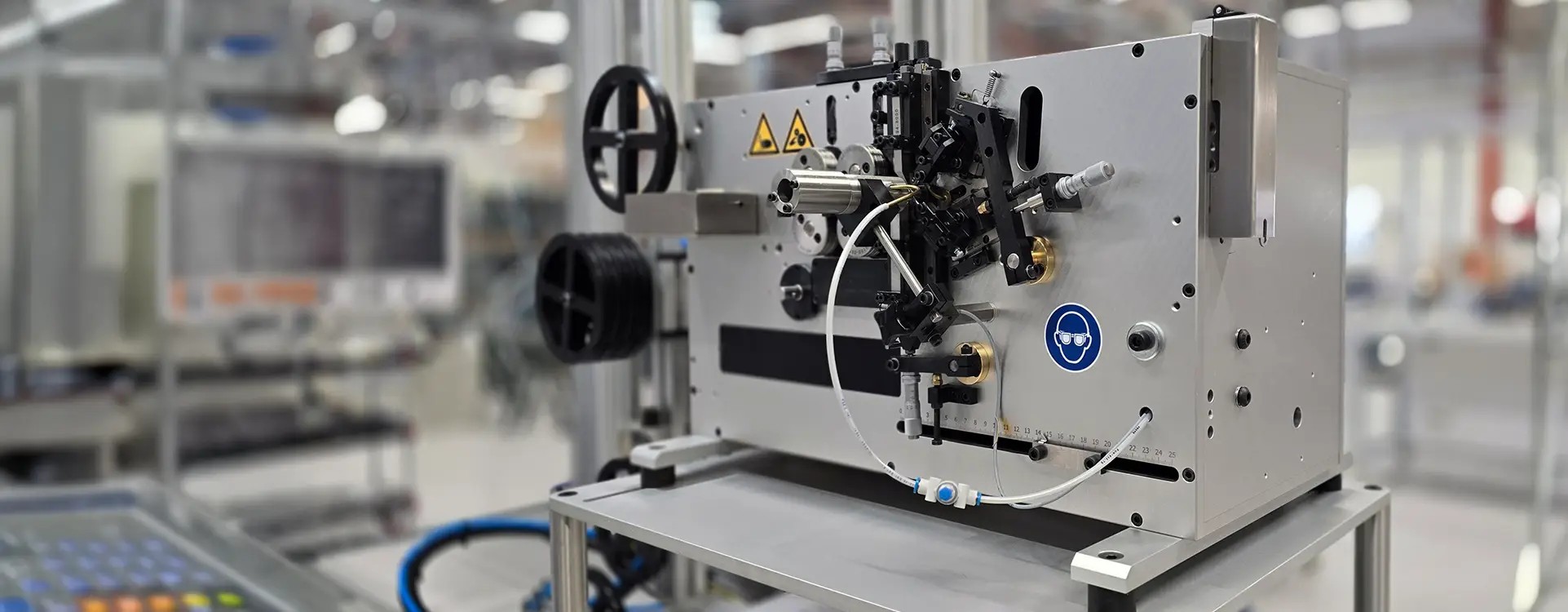

Tekda C2 Pneumatic Coiler

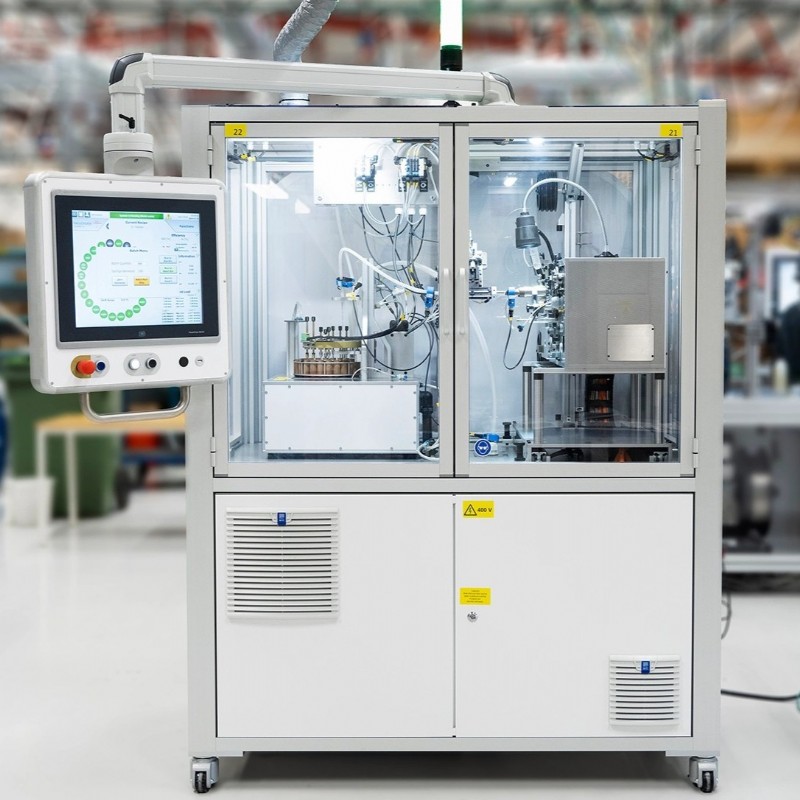

Tekda C4 CNC Coiler

The Tekda C4 CNC System is designed for direct integration within automated assembly lines, delivering high‑precision spring coiling across varied production speeds, spring designs, and tolerance specifications

• Wire Diameter: 0.1 mm to 1.1 mm
• Outer Diameter (OD): 1 mm to 22 mm
• Pitch Range: 0.4 mm to 26.4 mm (dependent on OD and spring design)

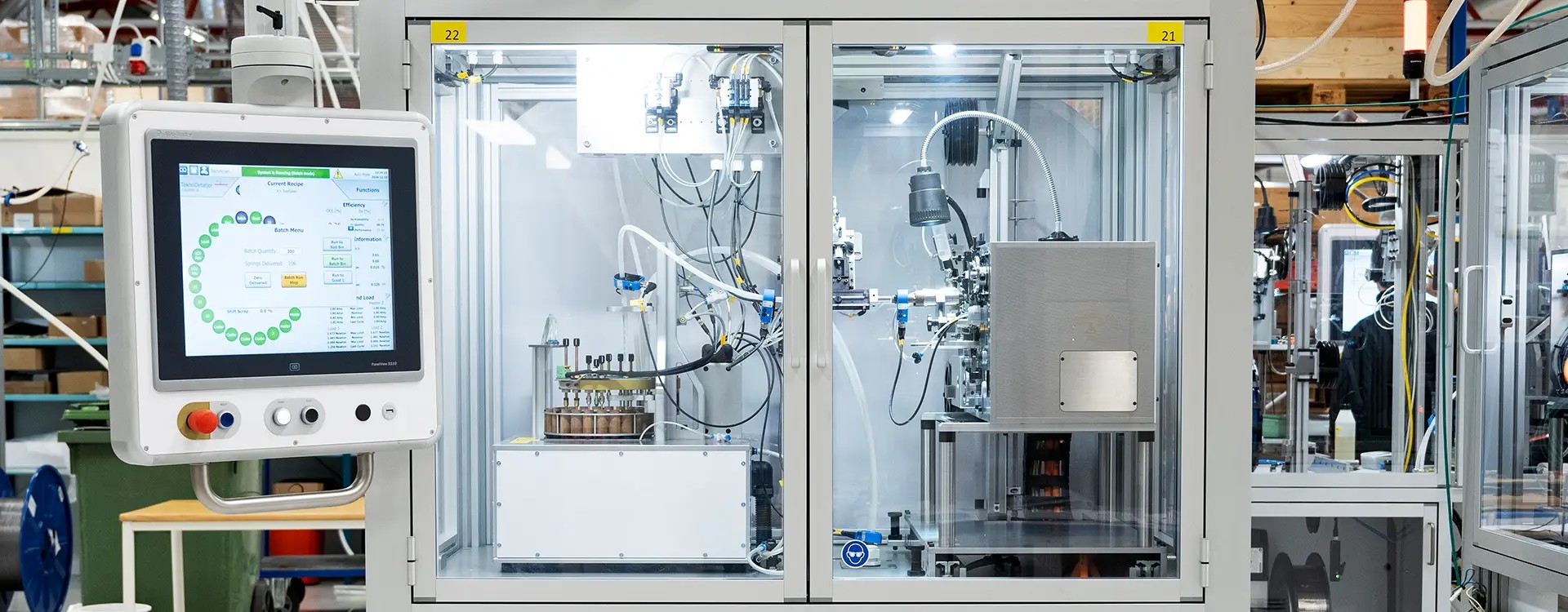

Fully Integrated Tekda C4 Pneumatic Coiler
